Impress for Less with Cost Effective BAS Floor Plans

Fast & Accurate Floor Plans
Custom floor plans to give your company additional resources without the overhead cost.

We offer high quality floor plan graphics, with technical expertise to include building details such as zoning, windows, built-ins, railings, furnishings, and more. These unique renderings can be used for planning and sales purposes at a fraction of the cost of traditional architectural drafts.

2D Floor Plans

Our 2D packages start from simple with black walls an a white background to including, zoning, or ductwork. These 2D floor plans will elevate your look and feel.

See 2D Options

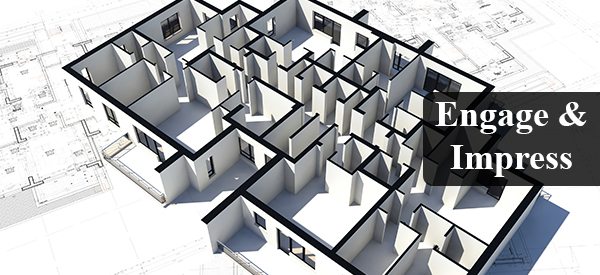

3D Floor Plans

From monochromatic floors with medium definition to lightly textured floor plans with an architectural sketch feel – our 3D floor plan options will have you standing out in the crowd.

See 3D Options

Photorealistic Renderings

Our trained 3D developers can create high-quality 3D equipment renderings for buildings and any type HVAC or MEP equipment. We deliver high-end, comprehensive and detailed images that work in the field.
Learn More

Engage Customers

Stand out from the competition when you engage clients with walk through animation that allows the end-user to have a life-like experience.

Learn More

Elevate Your BAS

Better graphics, for better building management. Our 3D HVAC system graphics provide detailed cutaways, animations, and more with BAS Symbol Library v5, than typically provided with BAS software. Giving your system a cohesive look.
Learn More
