V5 SYMBOL LIBRARY
Use the power of our 3D design team to update your control system graphics with a fully developed custom v5 Symbol BAS graphics package. This package includes a comprehensive library with hundreds of high-end, realistic images and animation files to represent your unique control systems.
Why Choose Us?
Go beyond the built-in graphics to provide your graphics with a visual edge
Pre-built pieces are easy to use within multiple platforms to create a variety of layouts
One-time fee! Once purchased, teams can use it on all future projects with no recurring fees
Modules created for easier implementation in multiple platforms
THE BEST STANDARD BAS GRAPHICS LIBRARY
We offer the best standard BAS graphics library that is compatible with more than 95% of all major mechanical systems. The v5 Symbol Library offers the chance to differentiate yourselves in the BAS industry by delivering more appealing and realistic graphics than typically provided with BAS software.

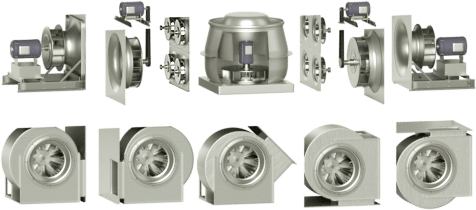

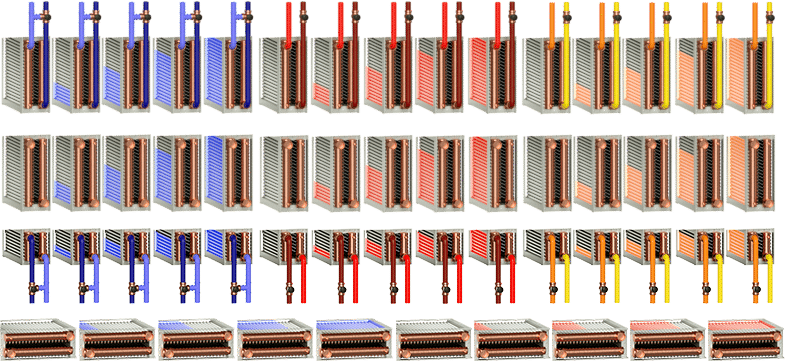

- More than 450 static .PNG graphics with over 100 animations in orthographic view

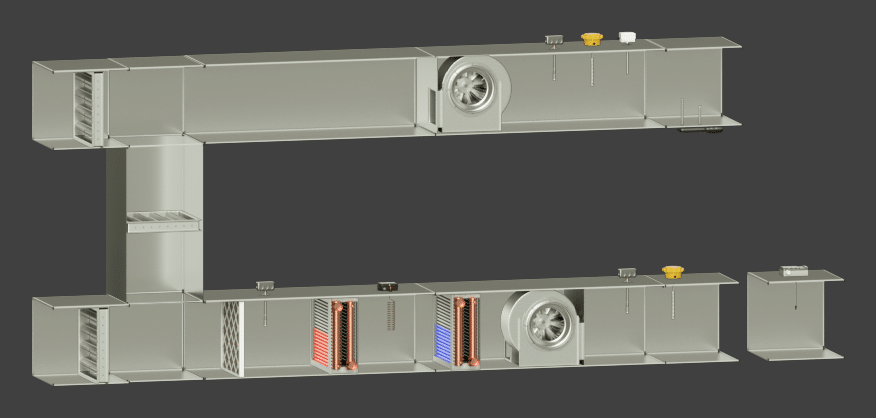

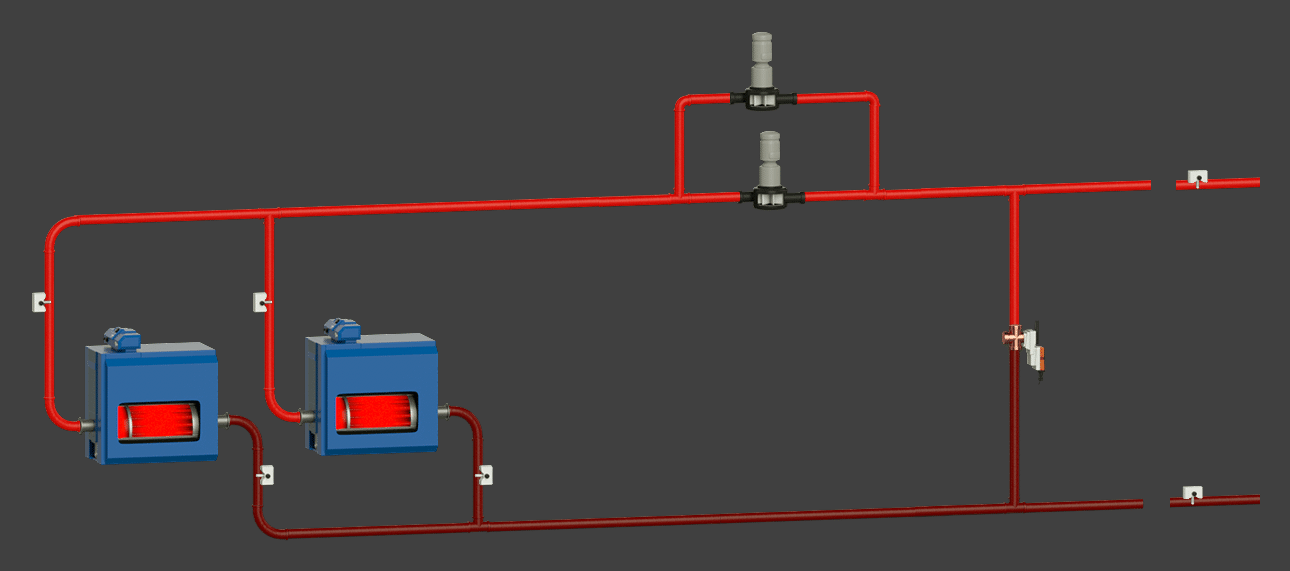

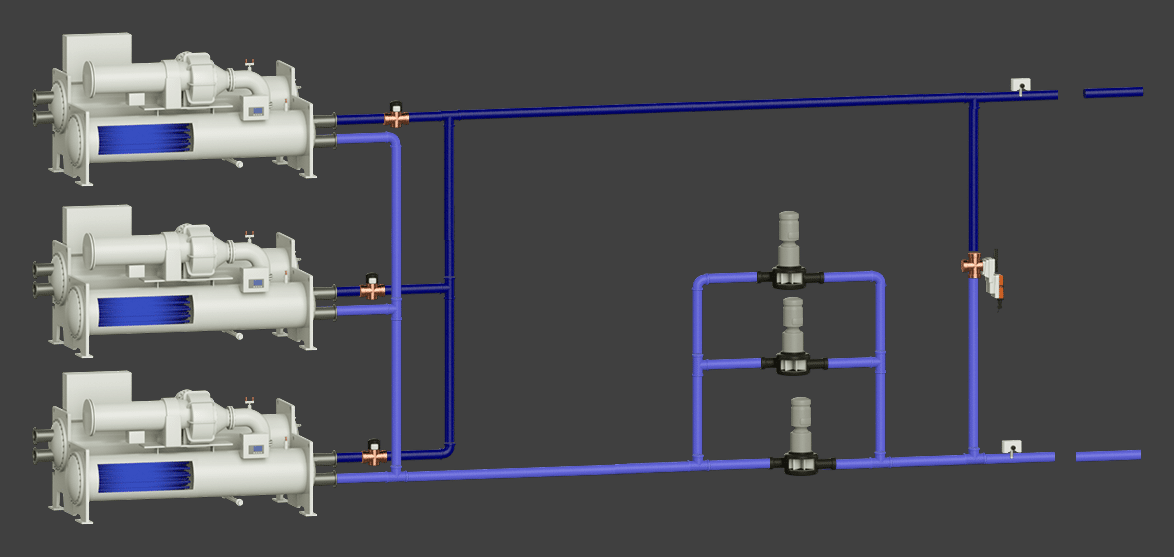

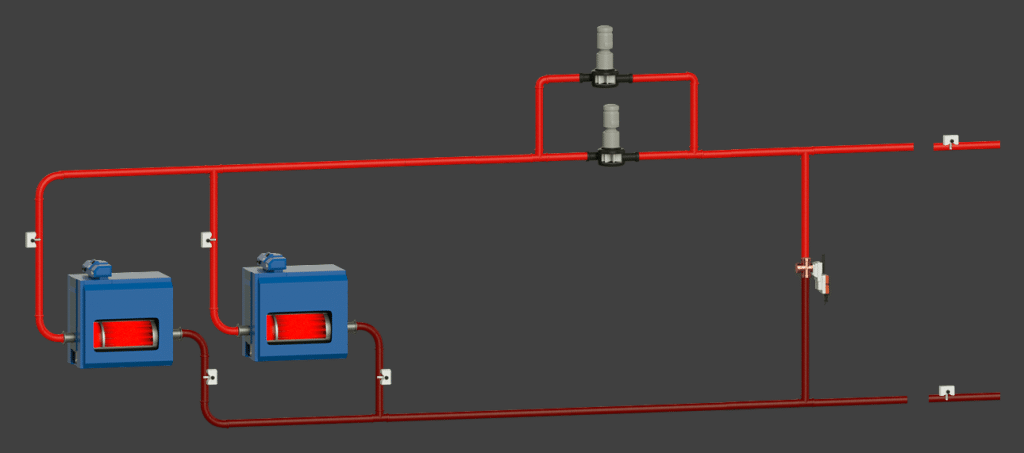

- Represent your control drawings or piping schematics in a graphical view
- Multiple duct lengths
- Symbols for energy-efficient equipment

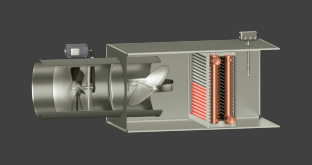

- Symbols available for any terminal unit ex. fan powered VAV, cooling only VAV, etc
TRIDIUM NIAGARA N4 MODULE
This tool is an extension update of our existing v5 Symbol Library that will easily replace N4’s existing graphics file. This symbol library mod- ule will effortlessly integrate within the Tridium software, allowing N4 users to implement QA Graphics’ extensive v5 Symbol Library. While this new symbol library module is for the Niagara N4 software only, the v5 Symbol Library files can be delivered for any control system.
- Same BAS v5 Symbol Library just now in an easy-to-use module for N4
- Allows you to easily substitute N4’s existing graphic files
- This module is free of charge to whoever owns a v5 Symbol Library
SCHNEIDER’S STRUXUREWARE / ECOSTRUXURE COMPONENT
This tool is an extension update of our existing v5 Symbol Library that will easily replace Schneider’s Struxureware/Ecostruxure’s existing graphic library. This symbol library component will effortlessly inte- grate within the software, allowing Struxureware/Ecostruxure software users to implement QA Graphics’ extensive Symbol Library. While this new symbol library component is for Schneider’s Struxureware/ Ecostruxure software only, the v5 Symbol Library files can be delivered to any control system.
- Same BAS v5 Symbol Library just now in an easy-to-use component for Schneider’s Struxureware/Ecostruxure
- Allows you to easily substitute Struxureware/Ecostruxure’s existing graphic library
- Symbols are set up with animations to be dragged and dropped in so points can be mapped within the graphic editor
- This module is free of charge to whoever owns a V5 Symbol Library
